Manually Operated
Elevate your Jetmaster convection body with the MK2 Gas Grates, featuring beautifully designed square coals that create a realistic and enchanting fire. The flames dance elegantly between each coal, mimicking the warm glow and inviting charm of a real fire. With effortless operation and no messy cleanup, the MK2 Gas Grates offer the perfect combination of style, warmth, and convenience for a truly cosy home experience.
| Brand | Jetmaster |
|---|---|
| Material | Mild Steel |
| Type (Heat Source) | Gas |
| Mobility | Built-in |
| MNP | M40200051 |
| Warranty | 5 Years |
Create an inviting ambience like no other with Jetmaster’s built-in IGC gas unit and become hypnotised by the realistic enduring flames mimicking a wood burning fire. An open fire has an irresistible appeal and for busy people who demand high standards the IGC has an enviable and established reputation.
Includes a heavy duty outer body, coals, vermiculite and installation manual.

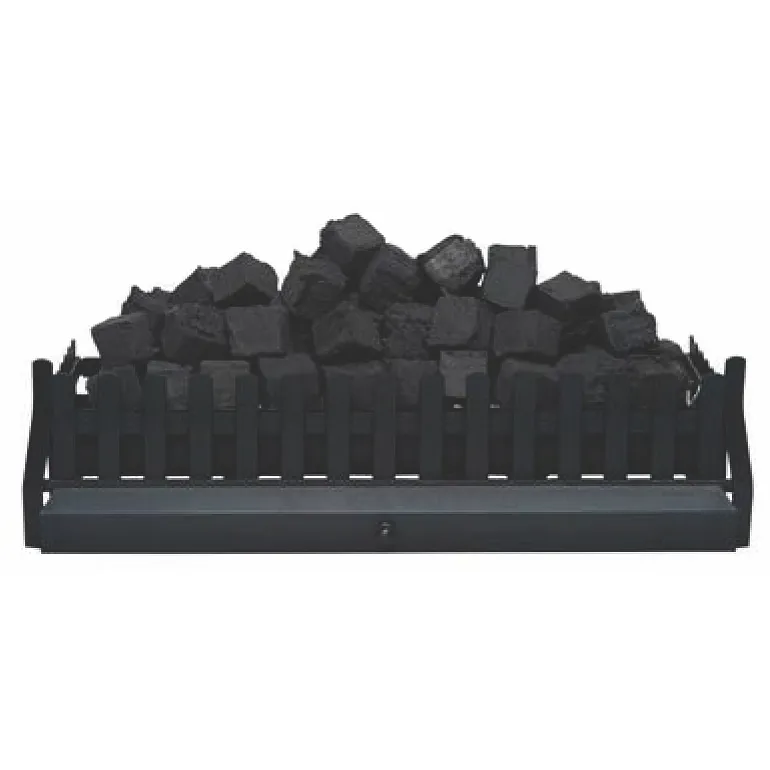

Grate options: Convector MK2 tray only
Features:
Includes:
The remote controlled system can only be operated for an International Gas Convector body (IGC) i.e. this applies to new installations only. The mechanism controlling the gas grate via the hand remote is fitted below the burner tray, ensuring that the clean lines of the unit are maintained and no additional fitments are necessary. The IGC convector box has slight modifications to the standard convector box however the fundamental design continues to generate both convection and radiated heat. The standard Jetmaster safety features continue to apply to the new range.
Size: 550mm length x 335mm depth x 650mm height

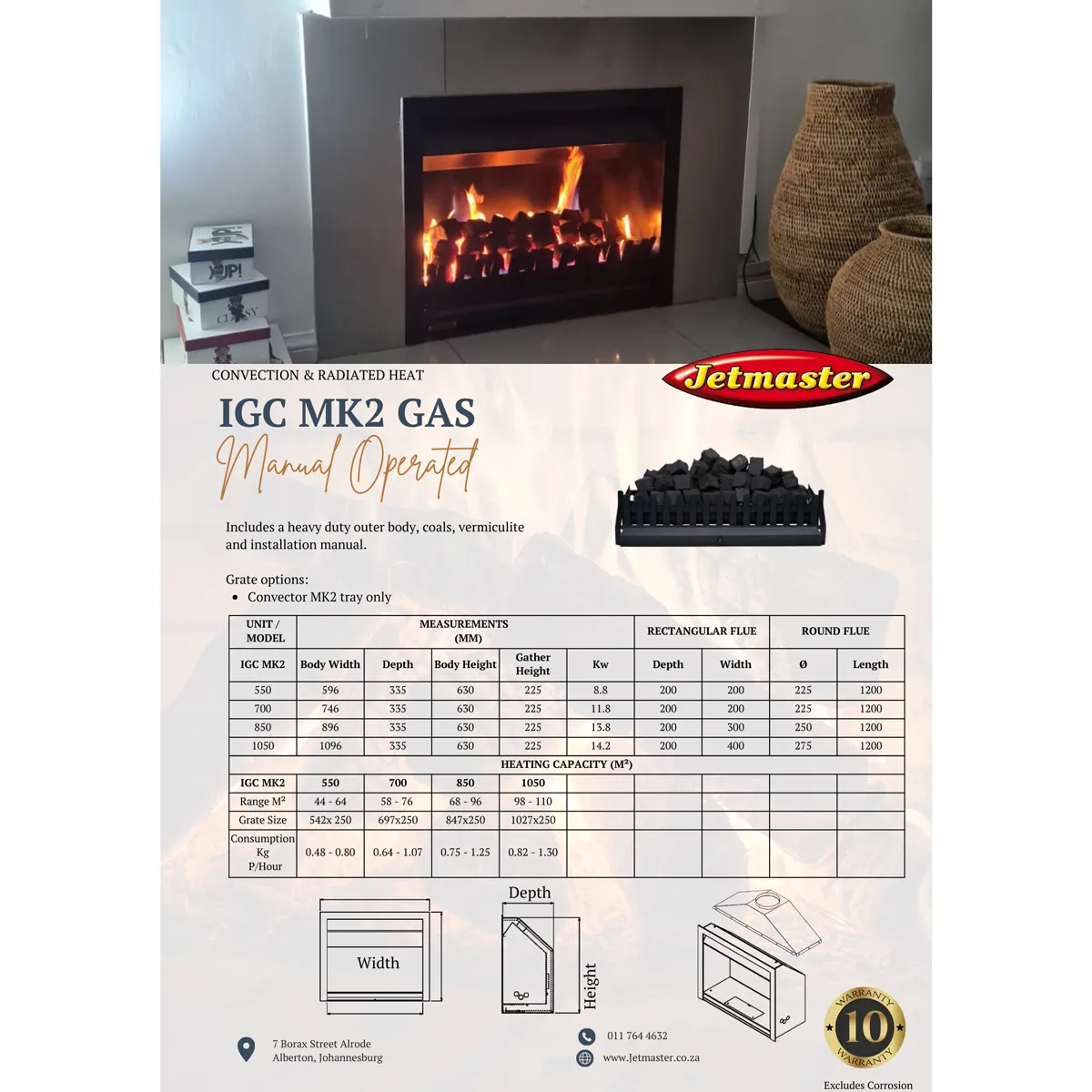

| Model | Measurements (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Rectangular Flues (mm) | Round Flues (mm) | ||||||||
| Unit | Width | Depth | Body Height | Gather Height | Kw | Depth | Width | Ø | Length |
| 550 | 596 | 333 | 630 | 225 | 8.8 | 200 | 200 | 225 | 1200 |
| 700 | 746 | 333 | 630 | 225 | 11.8 | 200 | 200 | 225 | 1200 |
| 850 | 896 | 333 | 630 | 225 | 13.8 | 200 | 300 | 250 | 1200 |
| 1050 | 1096 | 333 | 630 | 225 | 14.2 | 200 | 400 | 275 | 1200 |
| *Gas Consumption is approximate | |||||||||
| Model | 550 | 700 | 850 | 1050 | |||||
| Heating Capacity (kW) | 8.8 | 11.8 | 13.8 | 14.2 | |||||
| Range Heating Capacity (m2) | 44-64 | 58-76 | 68-96 | 98-110 | |||||
| Gas Consumption Per Hour* (Kg) Low | 0.48 | 0.64 | 0.75 | 0.82 | |||||
| Gas Consumption Per Hour* (Kg) High | 0.8 | 1.07 | 1.25 | 1.3 | |||||
