Manually Operated

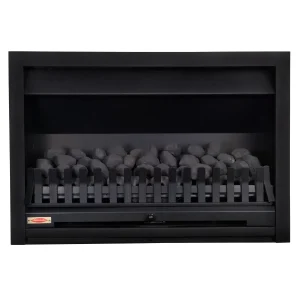

Designed exclusively for Jetmaster’s convection bodies, the IGC Deluxe Gas Fireplaces deliver the warmth and charm of a traditional fire without the hassle of cleanup. With carefully crafted round coals that glow beautifully when lit, this unit creates an inviting ambiance at the flick of a switch. Enjoy the look and feel of a cozy fire, with all the ease and efficiency of gas – perfect for those seeking both style and convenience in their home
| Brand | Jetmaster |
|---|---|
| Material | Mild Steel |
| Type (Heat Source) | Gas |
| Mobility | Built-in |
| MNP | M40200067 |
| Warranty | 5 Years |
Our International Gas Convertor Deluxe range, known as the IGC DLX, features an exceptional angled gas grate that ensures an even distribution of flames and creates an ideal setting for the red-hot ceramic coals. If your preference is a visually appealing gas fireplace, the Deluxe model is the ideal choice for you.
Includes a heavy duty outer body, gas grate, coal set and installation manual.
Grate options: Convector Deluxe tray only
Features:
Includes:
The remote controlled system can only be operated for an International Gas Convector body (IGC) i.e. this applies to new installations only. The mechanism controlling the gas grate via the hand remote is fitted below the burner tray, ensuring that the clean lines of the unit are maintained and no additional fitments are necessary. The IGC convector box has slight modifications to the standard convector box however the fundamental design continues to generate both convection and radiated heat. The standard Jetmaster safety features continue to apply to the new range.
Size: 550mm length x 335mm depth x 650mm height
| Model | Measurements (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Rectangular Flues (mm) | Round Flues (mm) | ||||||||
| Unit | Width | Depth | Body Height | Gather Height | Kw | Depth | Width | Ø | Length |
| 550 | 596 | 333 | 630 | 225 | 8.8 | 200 | 200 | 225 | 1200 |
| 700 | 746 | 333 | 630 | 225 | 11.8 | 200 | 200 | 225 | 1200 |
| 850 | 896 | 333 | 630 | 225 | 13.8 | 200 | 300 | 250 | 1200 |
| *Gas Consumption is approximate | |||||||||
| Model | 550 | 700 | 850 | ||||||
| Heating Capacity (kW) | 8.8 | 11.8 | 13.8 | ||||||
| Range Heating Capacity (m2) | 44-64 | 58-76 | 68-96 | ||||||
| Gas Consumption Per Hour* (Kg) Low | 0.48 | 0.64 | 0.75 | ||||||
| Gas Consumption Per Hour* (Kg) High | 0.8 | 1.07 | 1.25 | ||||||
